Description

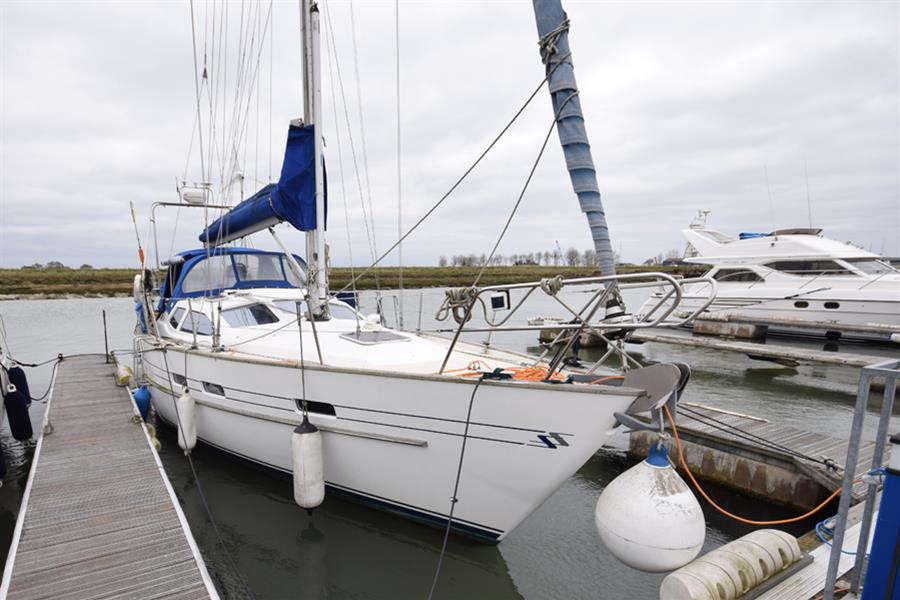

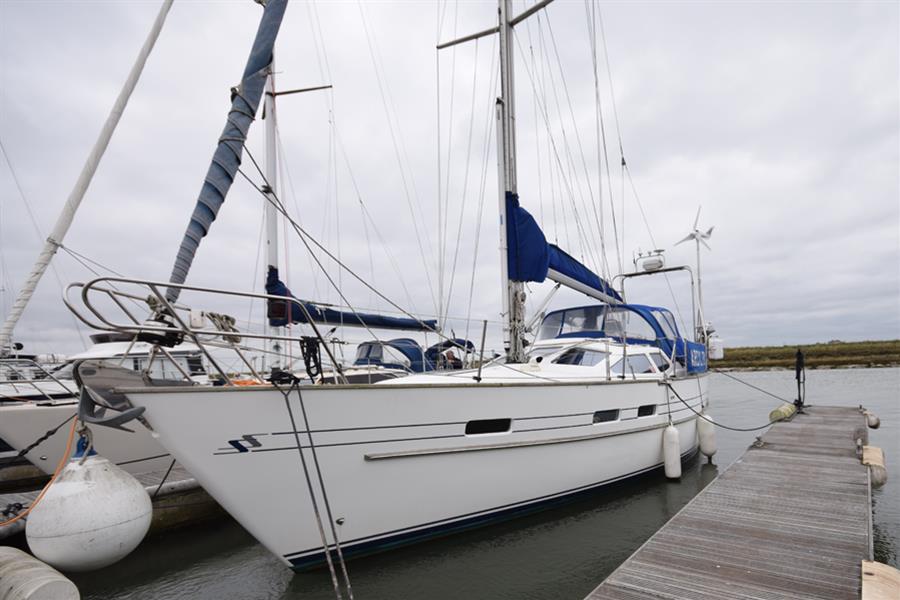

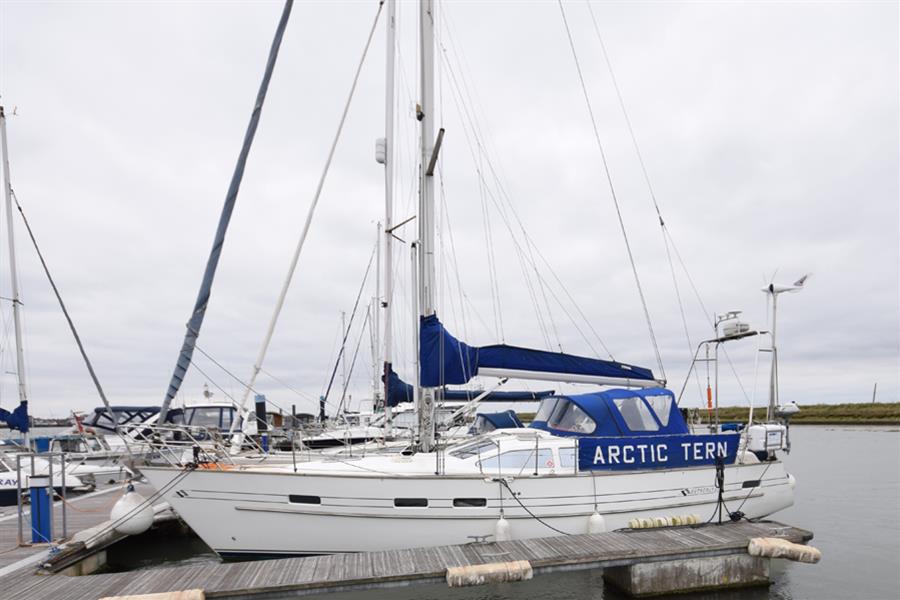

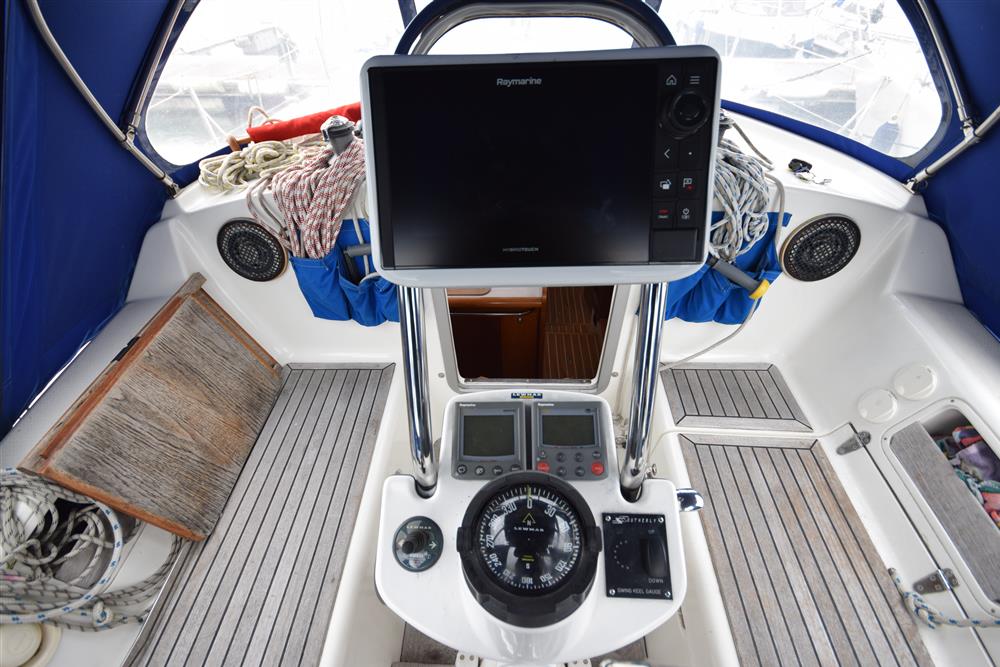

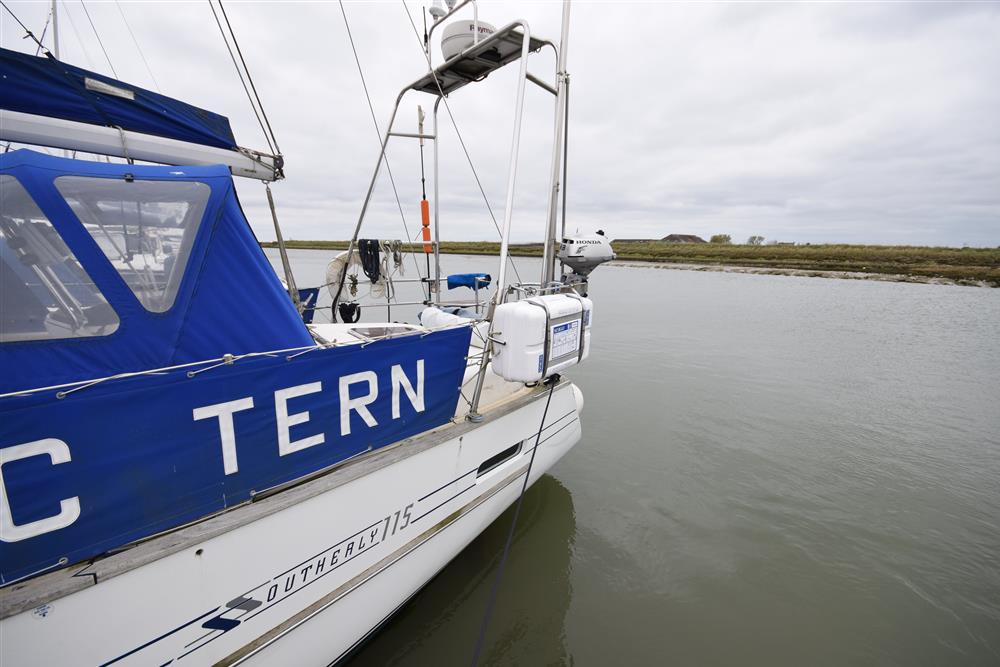

'Arctic Tern' is a well-maintained example of the Southerly 115 MkIV, having had a thorough refit by Northshore in 2023 after her current owner purchased her. Work included blasting the underwater surfaces, Coppercoating the hull and repainting the keel, as well as renewing the standing rigging, servicing the seacocks and any other jobs raised by the survey. At the same time, a new Raymarine Axiom plotter was installed at the helm with an AIS transponder and a new Rutland wind generator installed.

Viewing by appointment only through the Essex office ? 01621 785600 or email: essex@clarkeandcarter.co.uk

Accommodation

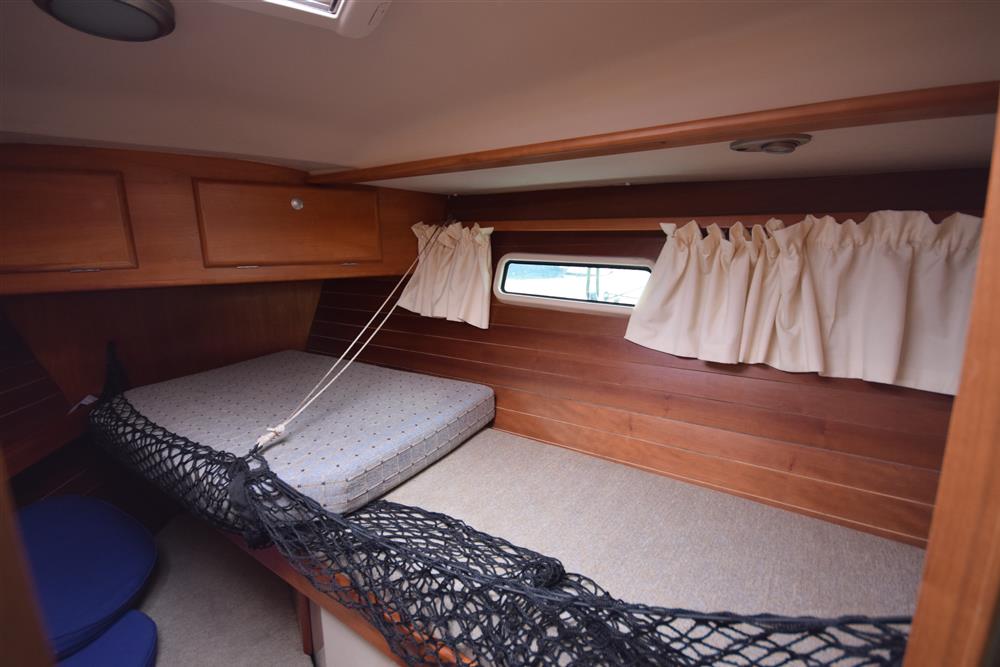

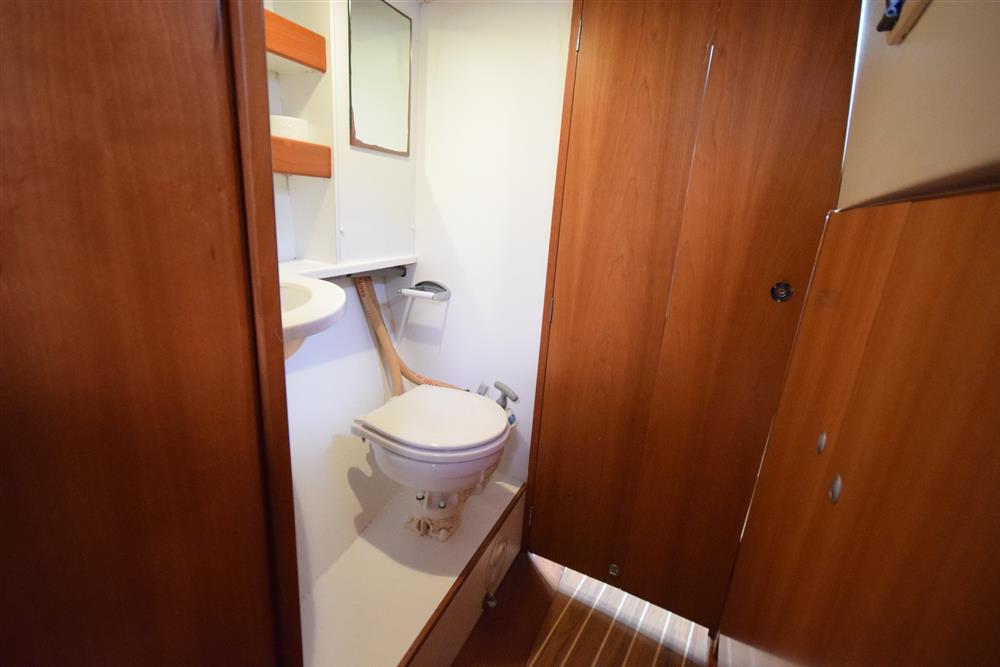

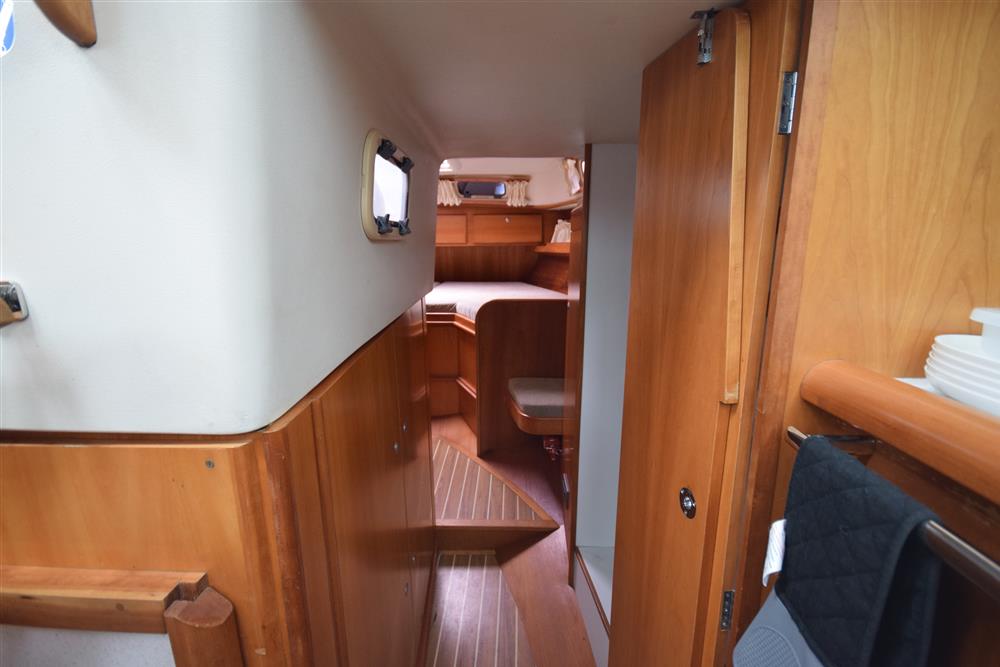

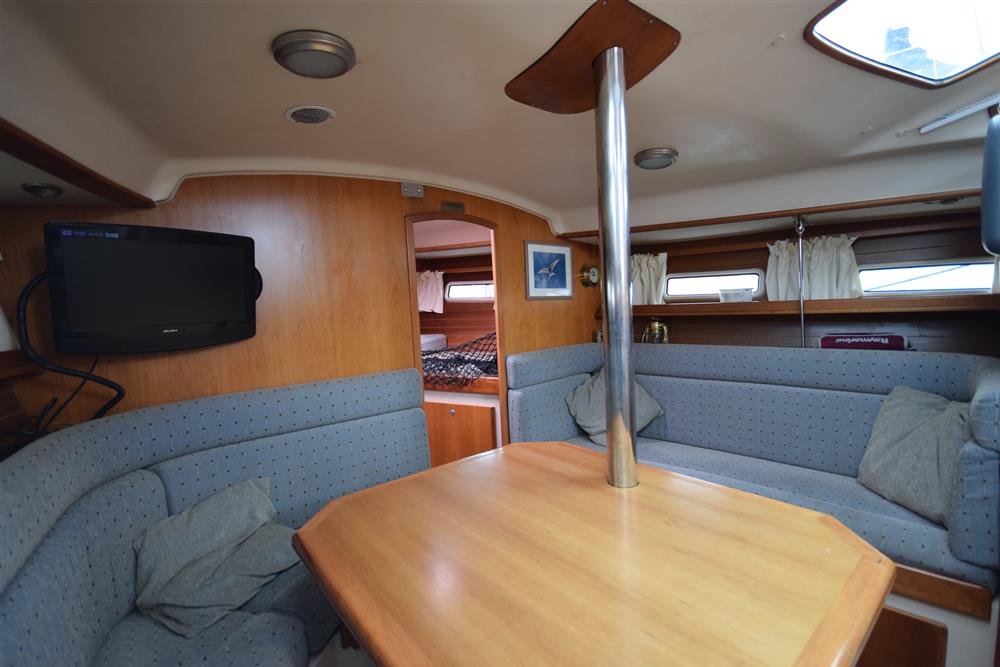

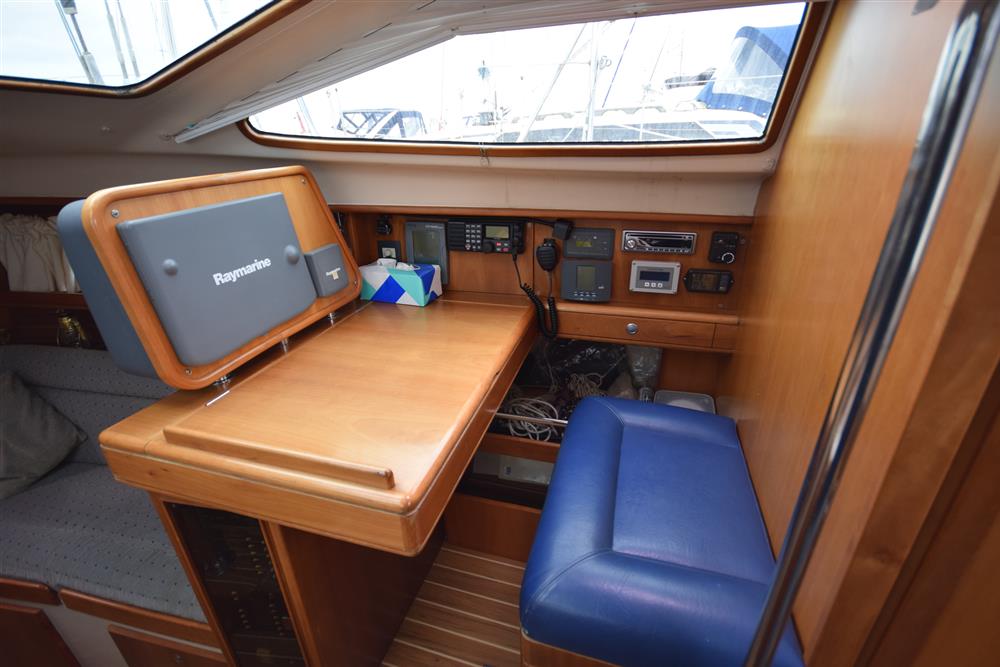

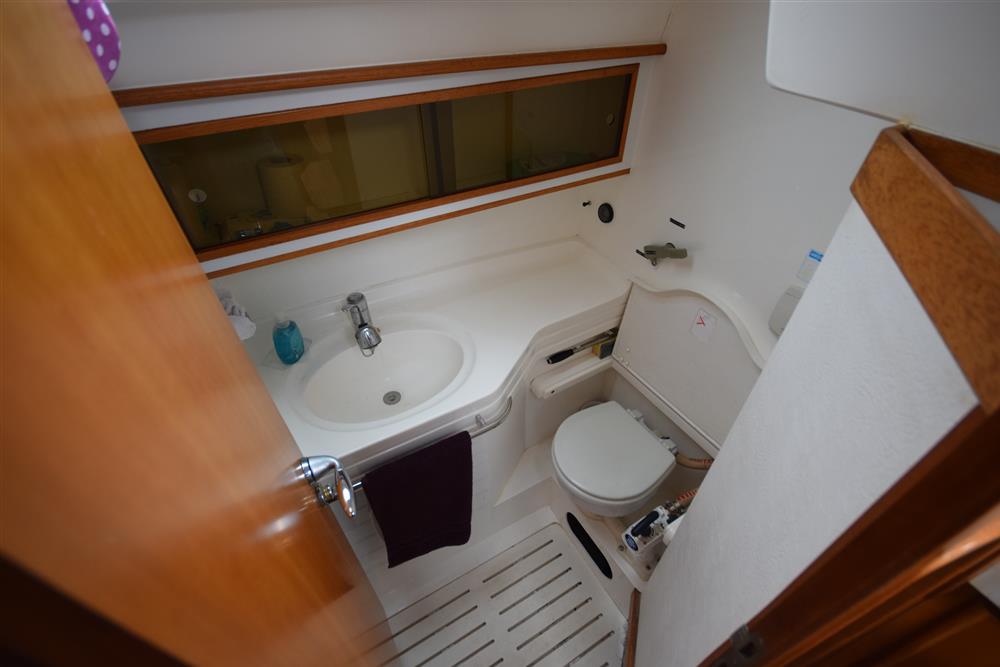

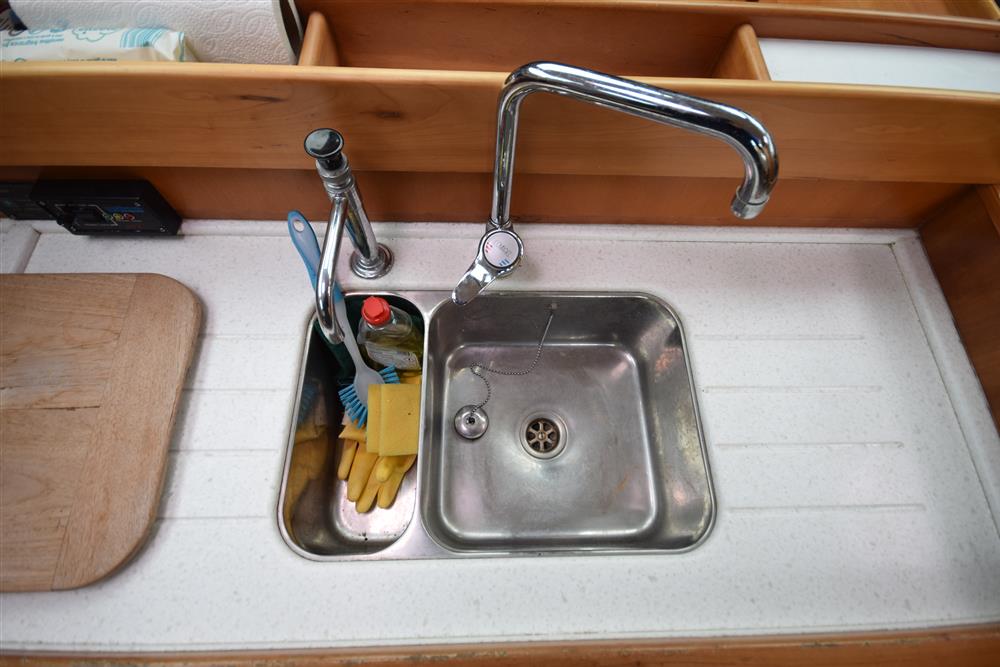

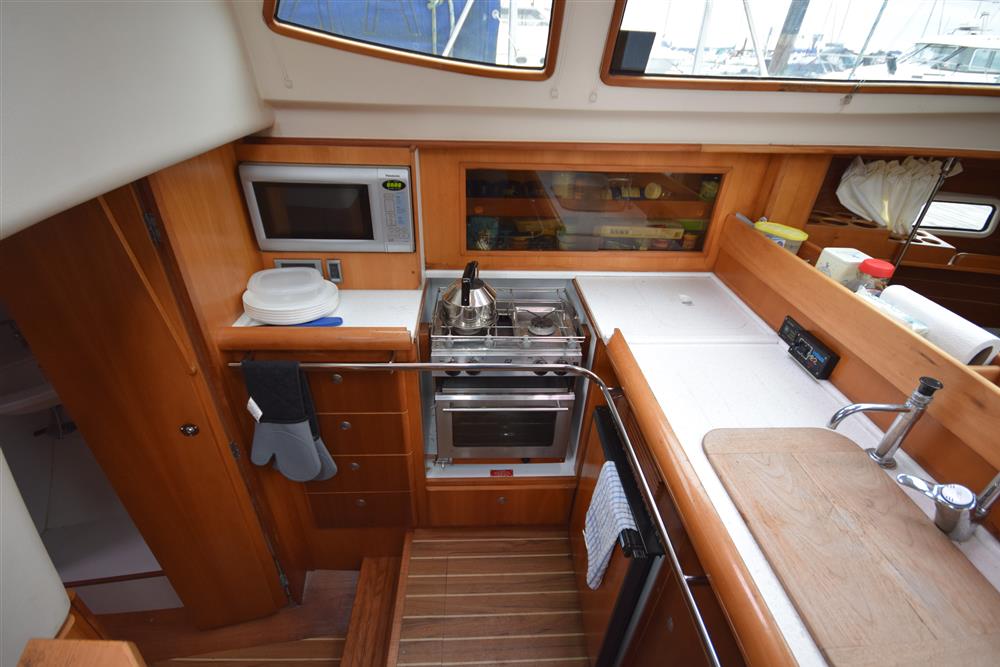

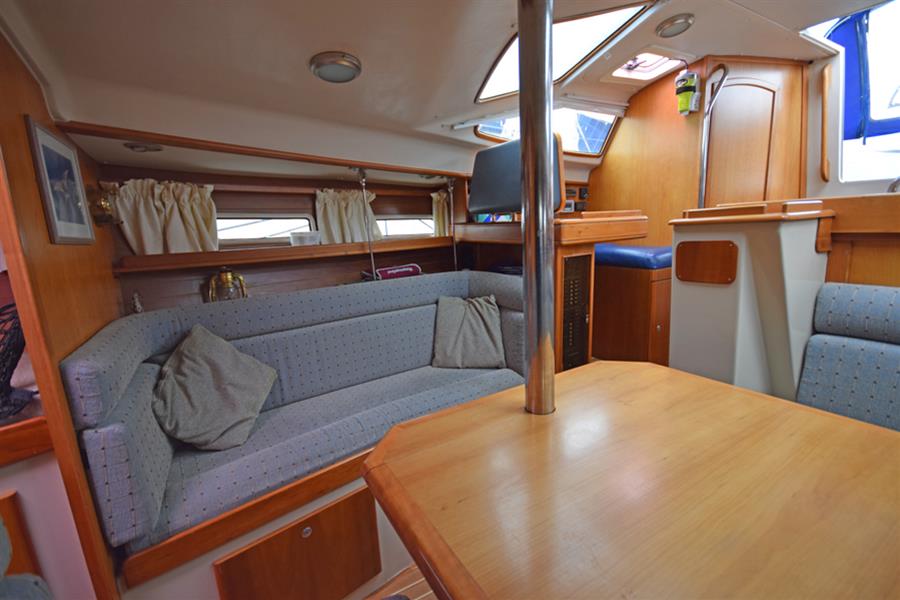

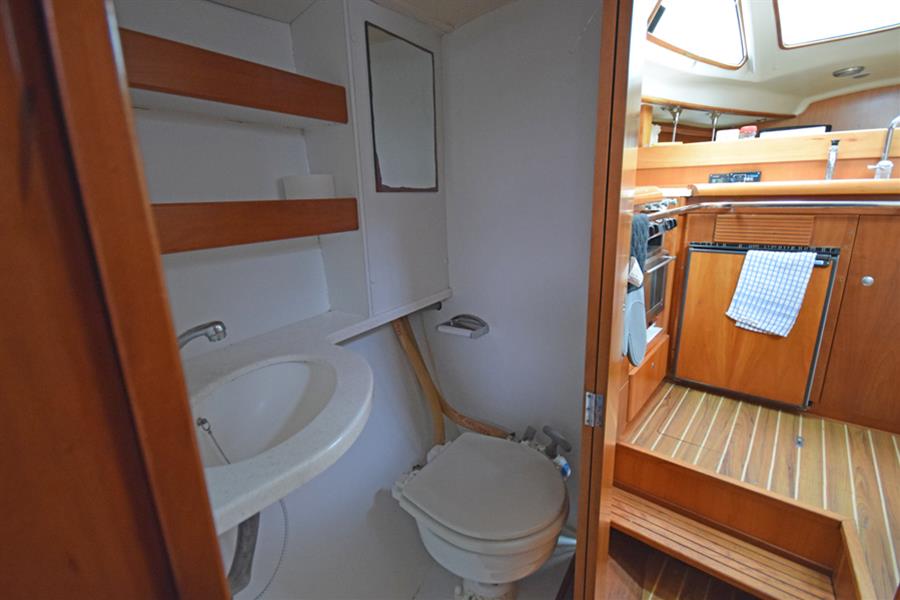

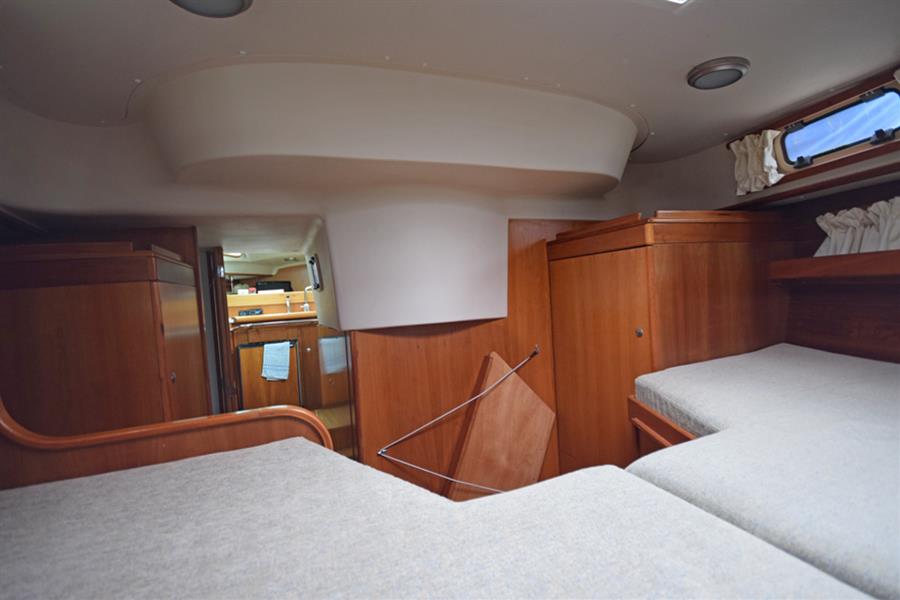

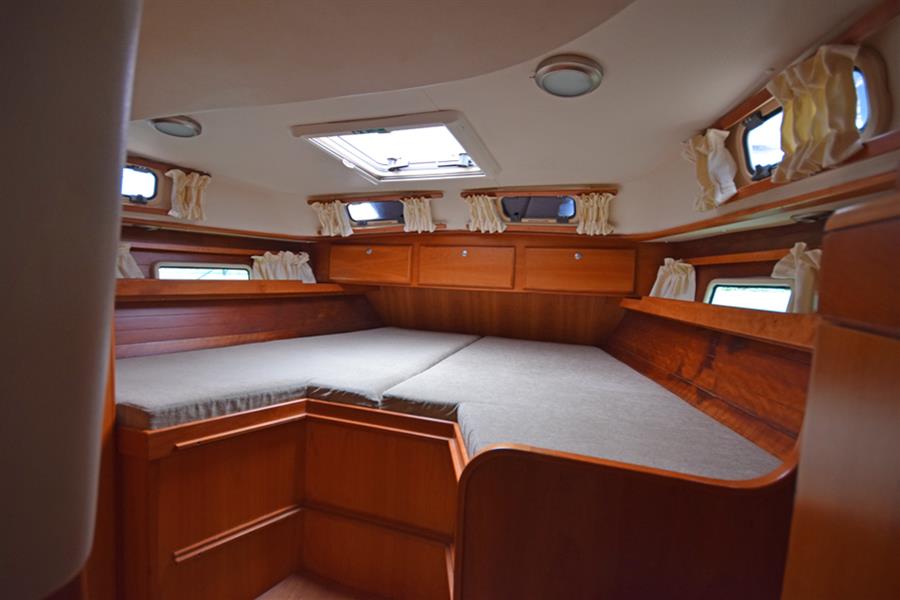

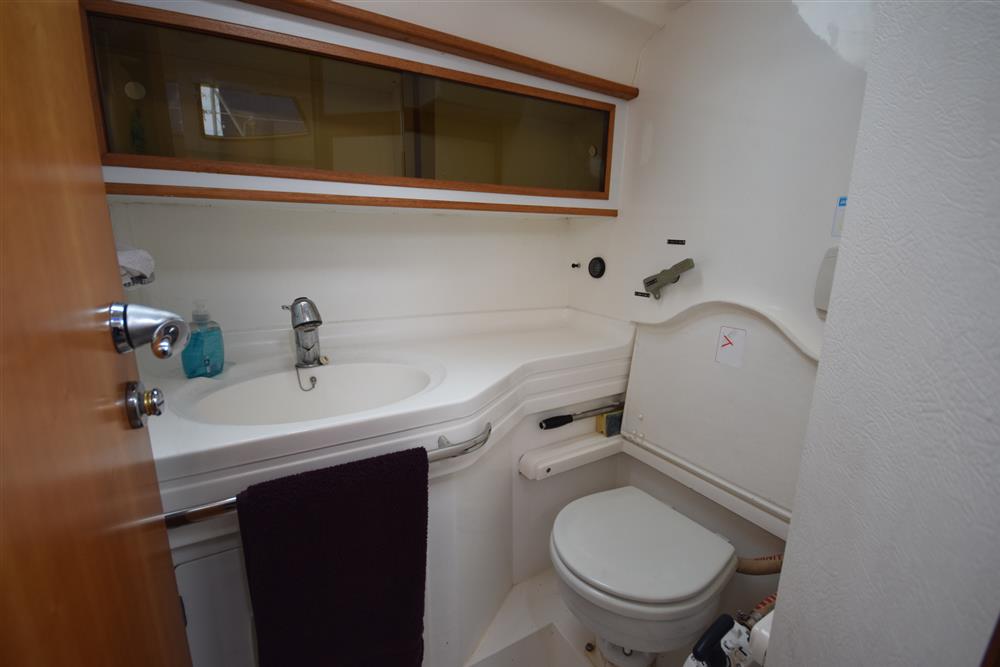

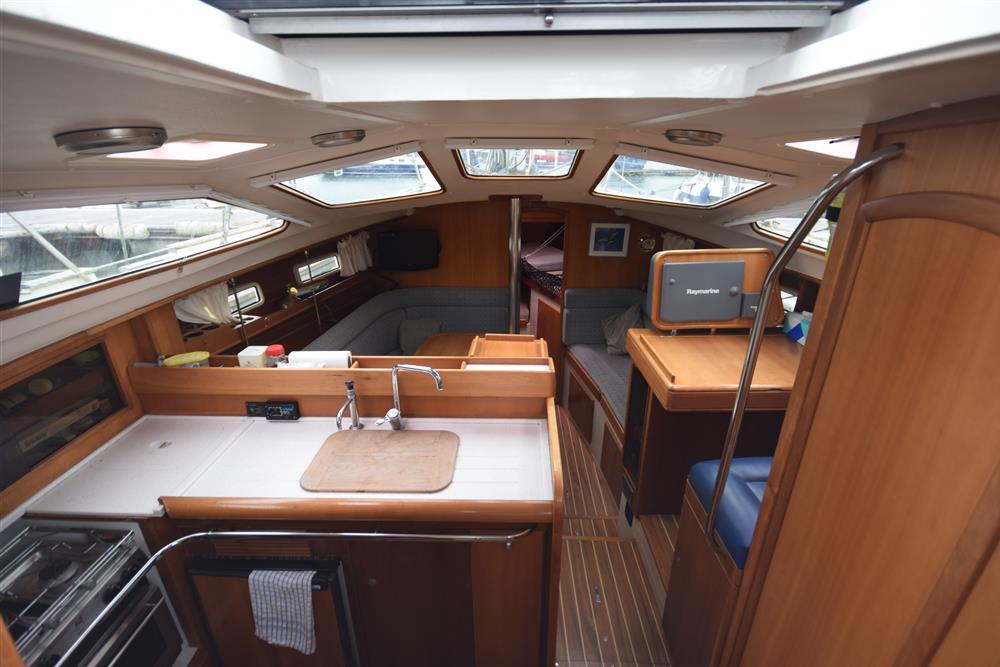

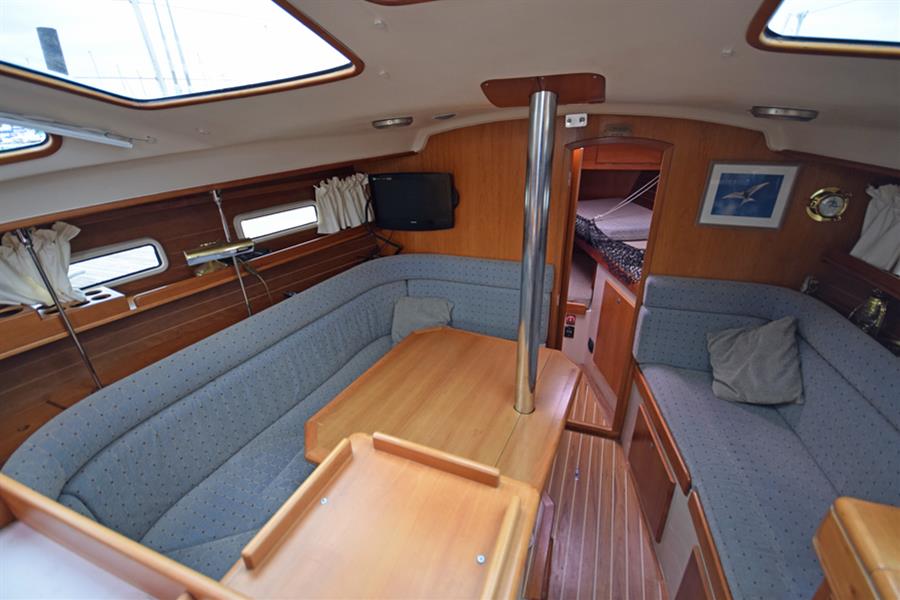

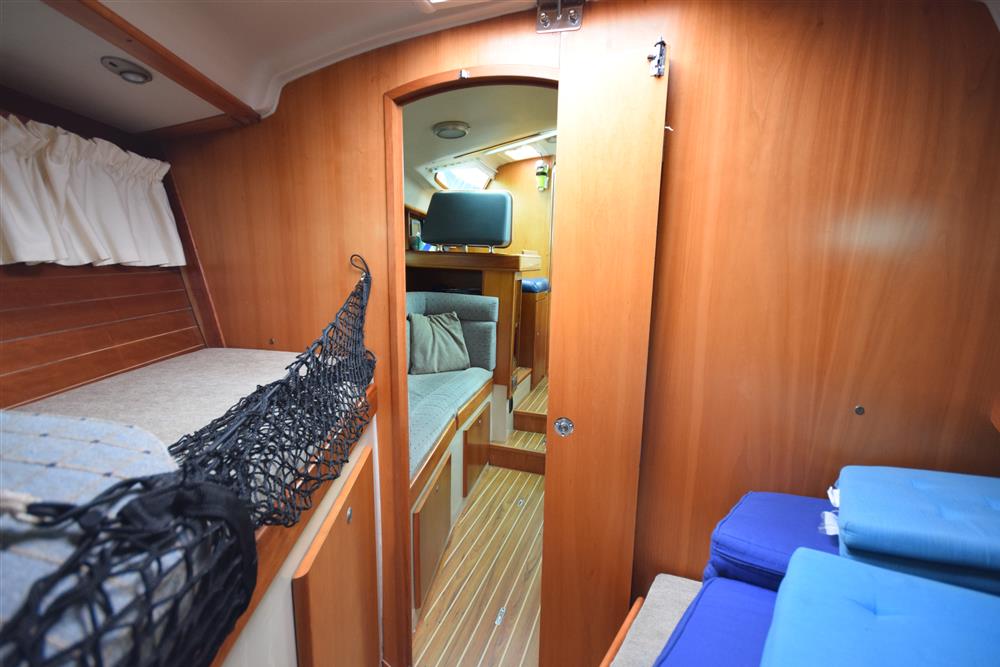

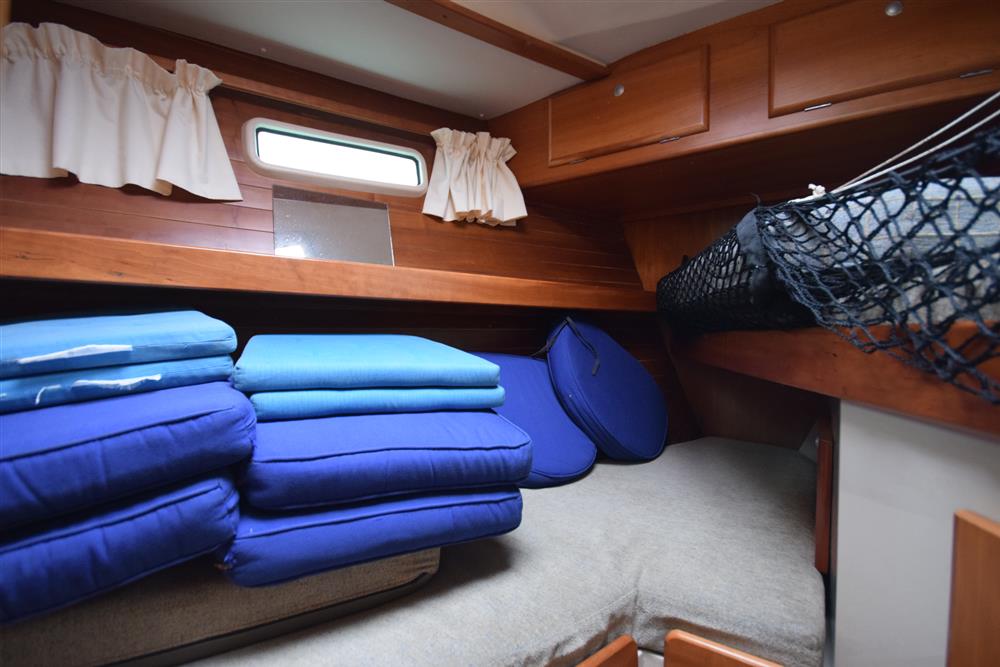

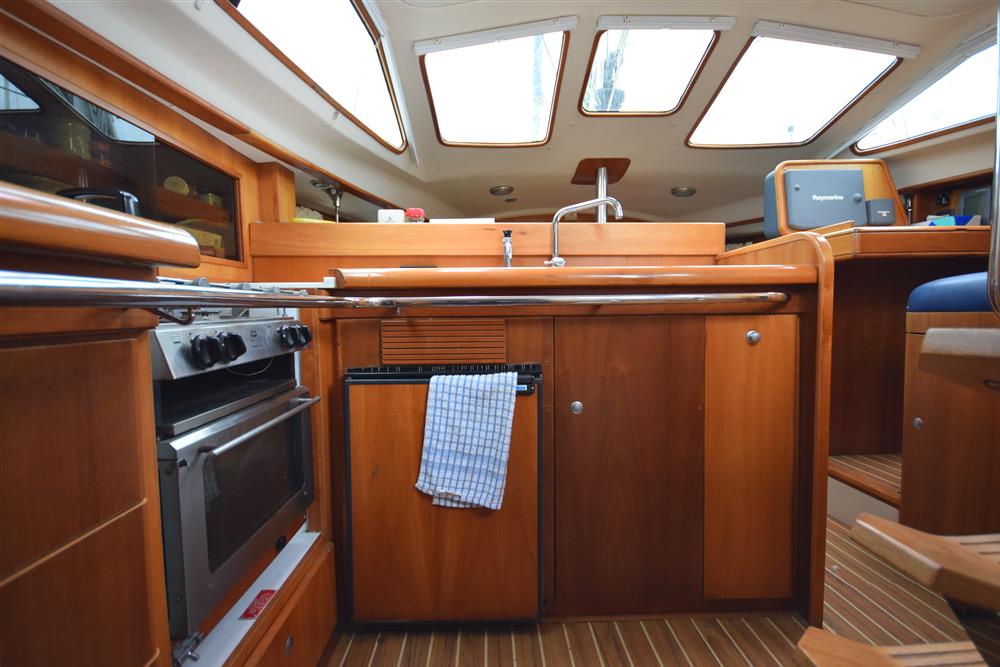

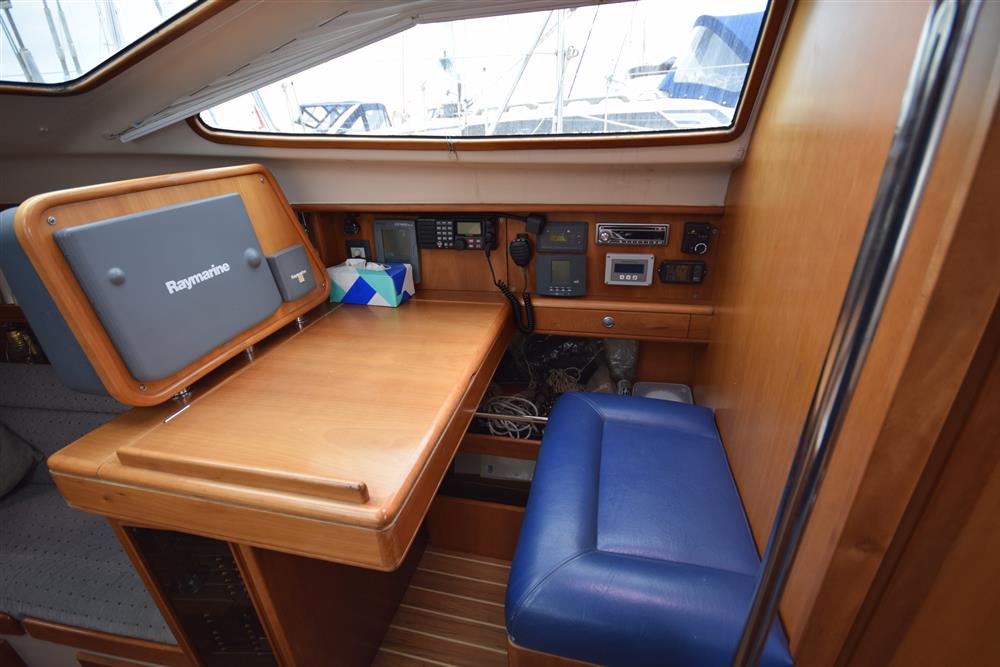

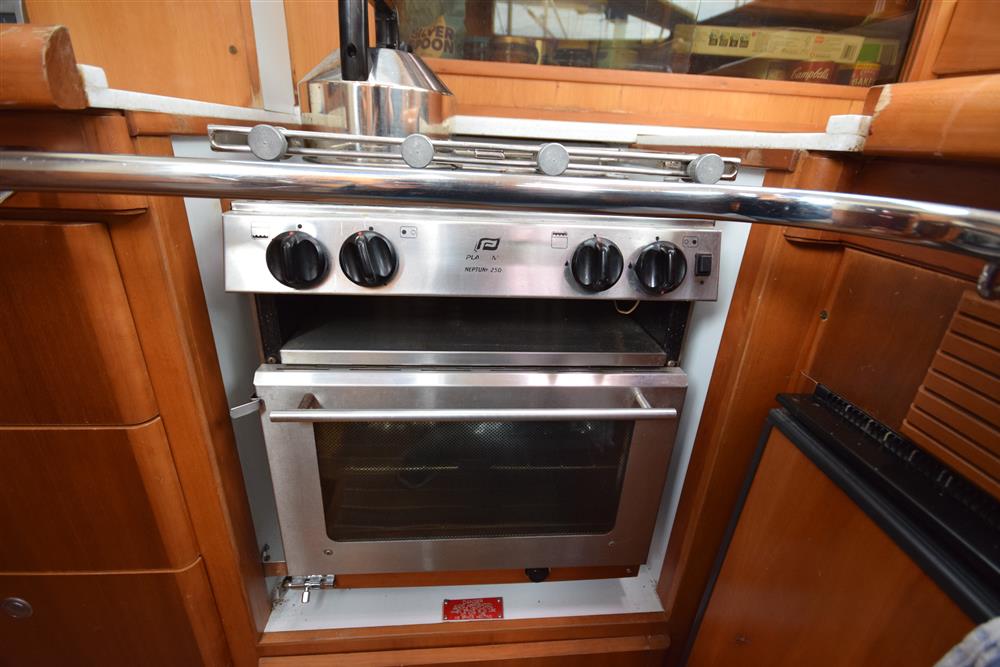

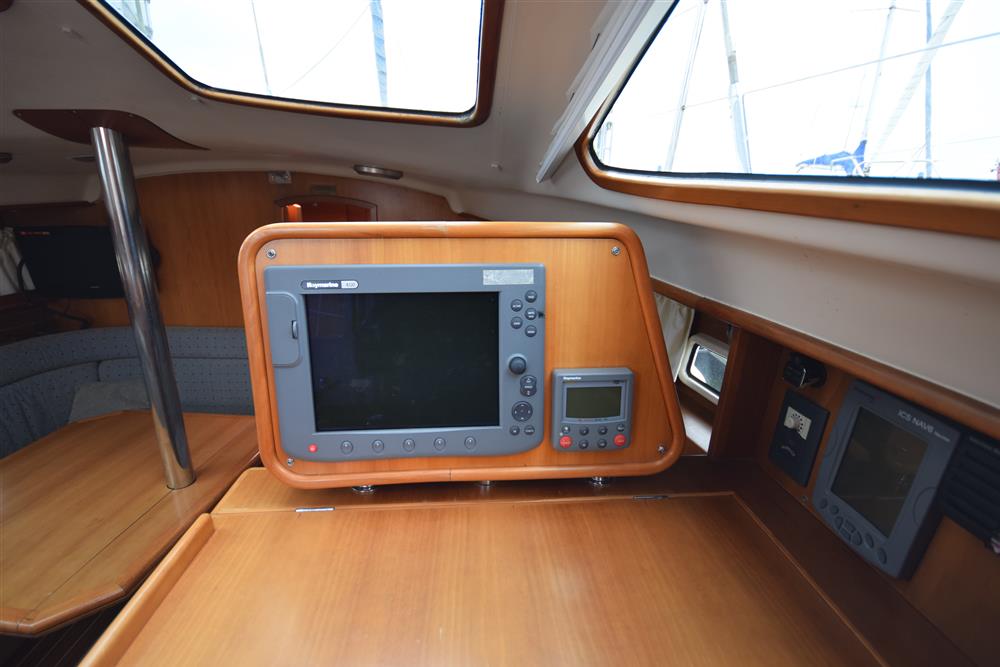

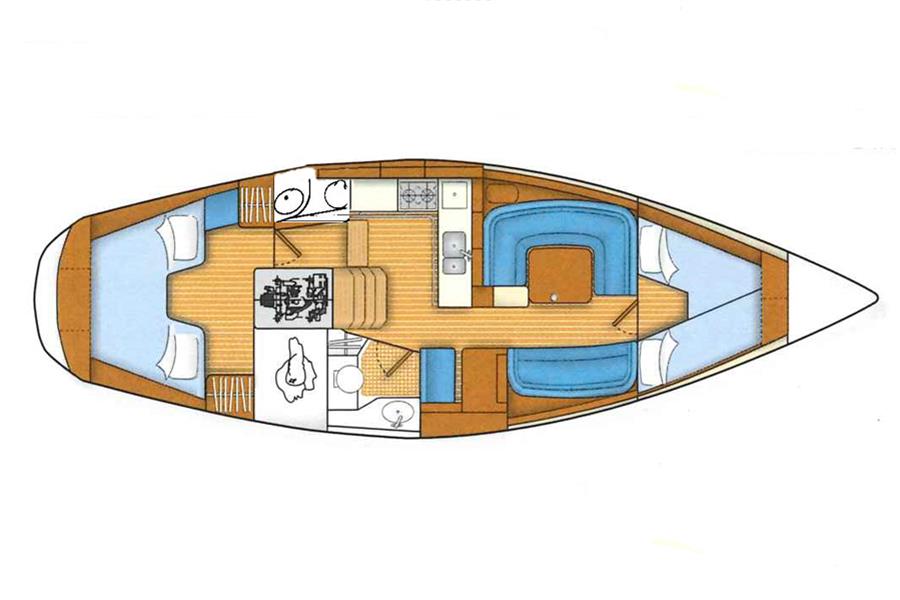

The accommodation offers up to seven berths in three cabins. Forward cabin with over and under berths. Hanging locker and hatch to foredeck. Saloon with dinette arrangement to port with saloon table. Settee berth to starboard. 15? LCD flat screen TV fitted to saloon bulkhead with Glomex TV antenna fitted to stainless steel arch. L-shaped galley aft to port with stainless steel galley sinks. Plastimo Neptune 2500 two burner gas stove with grill and oven. Keel-cooled evaporator plate, with sintered keel cooler, fitted to ice box. Greyline 85ASU front opening refrigerator. Panasonic 240v microwave fitted in aft end of galley. Navigation station aft to starboard with dedicated seat, plotter and autopilot control. Main heads compartment aft to starboard with Jabsco marine toilet, wash basin and shower. Holding tank system fitted. Access to aft cabin via walkthrough to port including en suite heads compartment. Aft cabin has two large single berths with an infill to make a very large double berth. Hanging lockers and port lights. En suite heads compartment with Jabsco marine toilet and wash basin. Mikuni hot air heating system with three outlets. Hot and cold pressurised water supply to galley sink and heads basins. Interior lighting throughout with reading lights to bunks. USB and cigarette lighter sockets.

Mechanical Systems

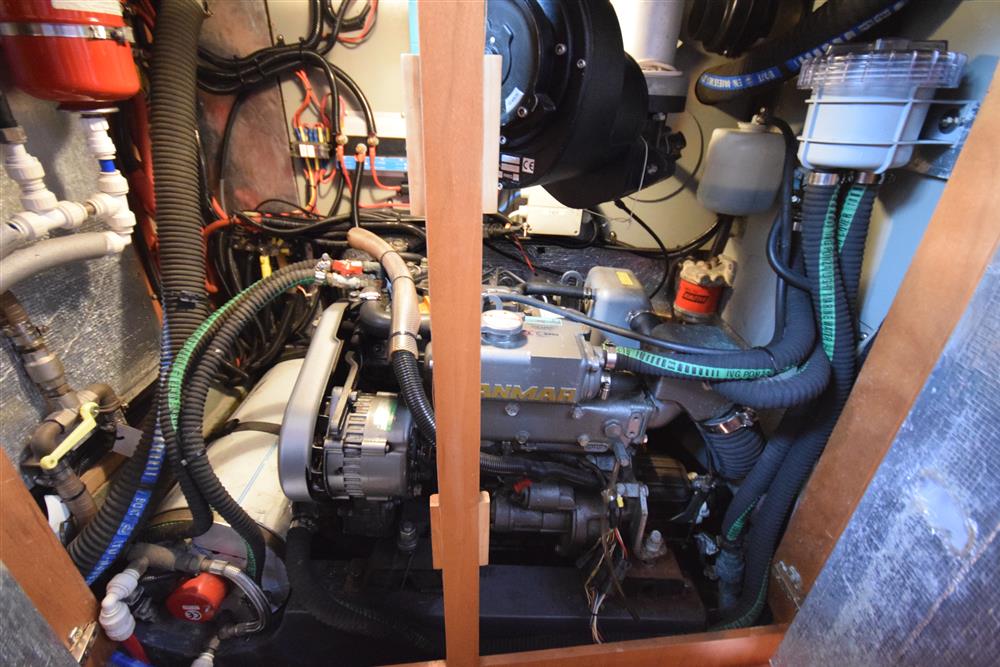

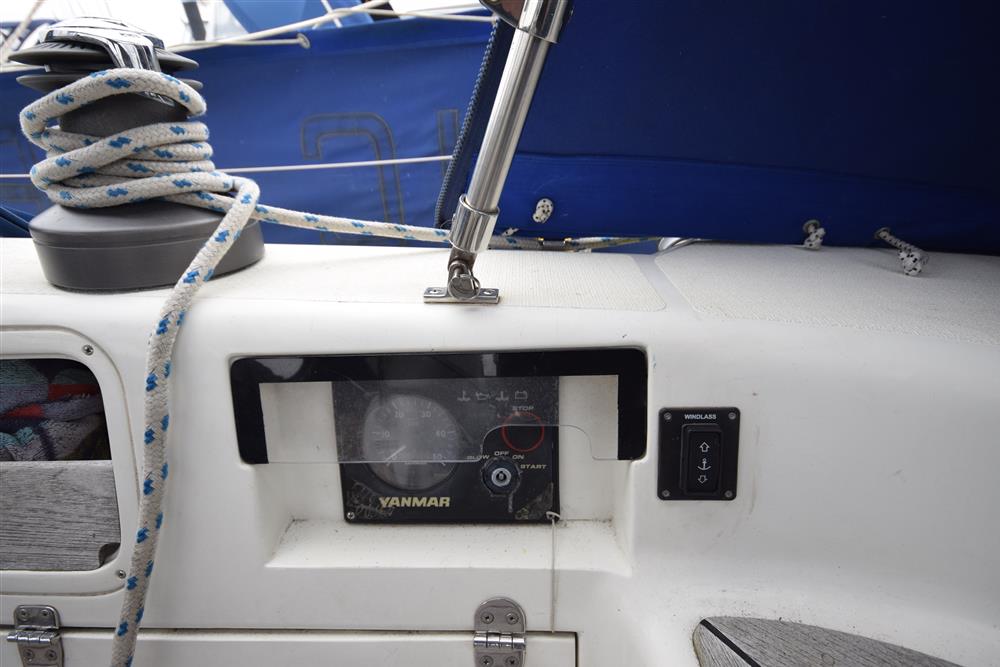

Yanmar 3JH3E, three cylinder, 40hp marine diesel engine located under cockpit in venilated and sound proofed compartment. Freshwater cooled via heat exchanger. Shaft drive to three blade Bruntons Variprop feathering propeller. R&D flexible coupling (replaced 2023). Single lever Morse control at pedestal. Ambassador rope cutter to shaft. Automatic fire extinguisher in engine space. 40 gallon stainless steel fuel tank. Engine serviced by Northshore in 2023.

75kg tunnel bow thruster, serviced 2023.

Electrical Systems

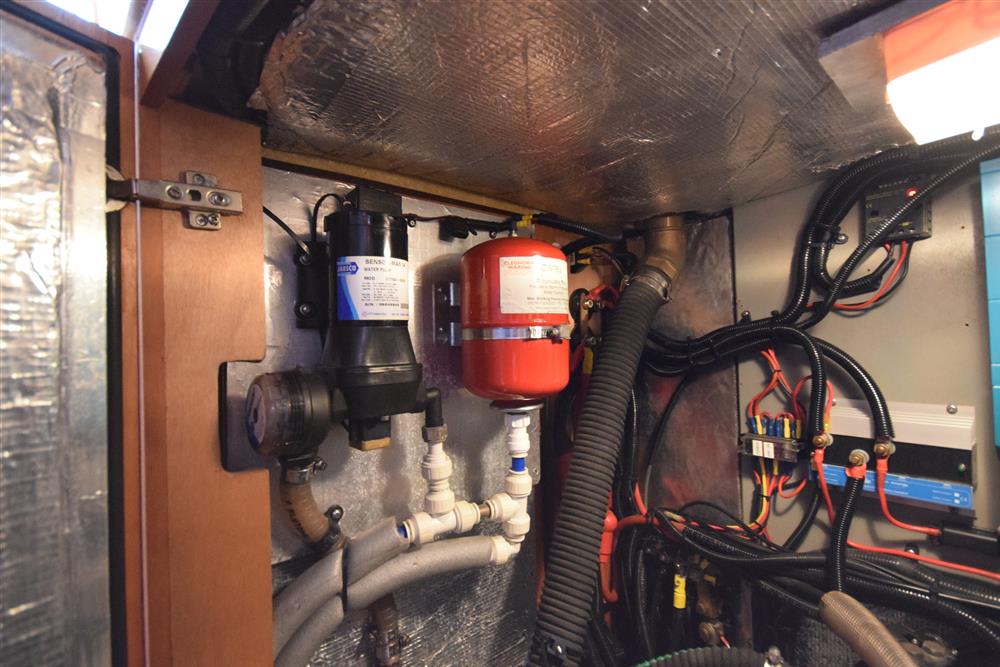

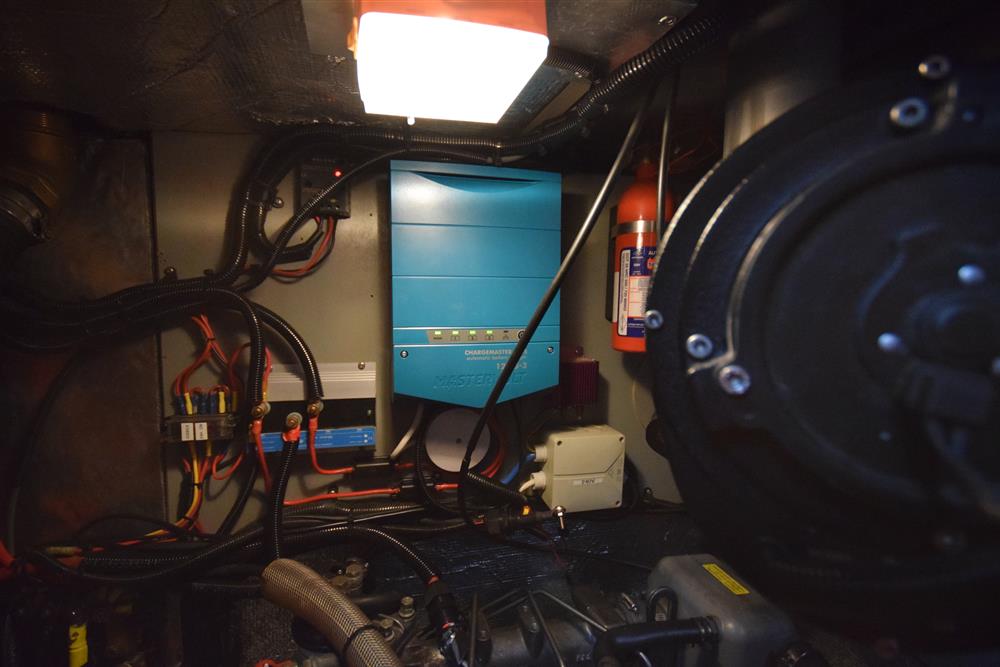

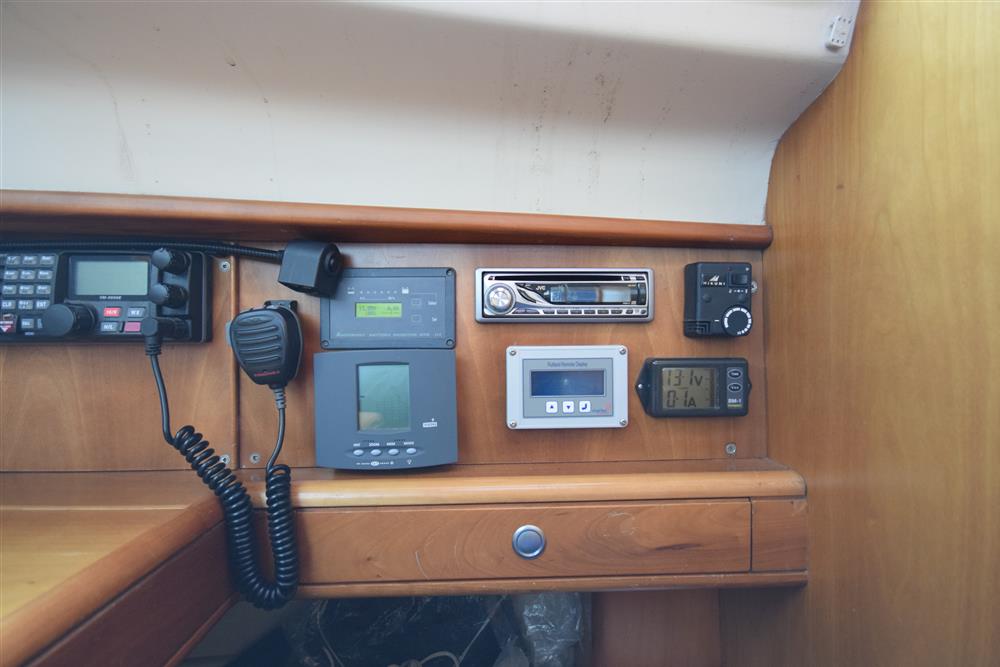

Three heavy duty 12v batteries, charged from engine alternator, one for engine start, two for domestic use. Batteries new 2021. NASA BM-1 battery monitor. 240V shore power system with 35amp Mastervolt Chargemaster automatic battery charger (new 2021), immersion heater and ring main system, with three double UK outlet sockets, earth leak circuit breaker and connecting cable. Mastervolt BTM-III unit to monitor charge/discharge of domestic batteries. Lightning master fitted at masthead with grounding plate fitted to hull. Rutland 1200 wind generator (new 2023) mounted on stainless steel arch. Solar panels. Rutland Remote Display solar and wind generator monitor.

Sails and Spars

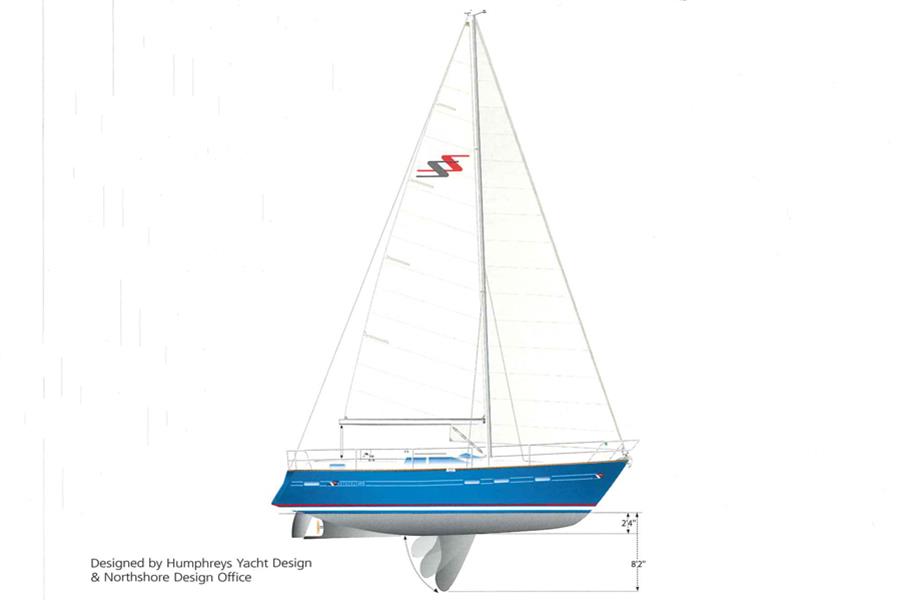

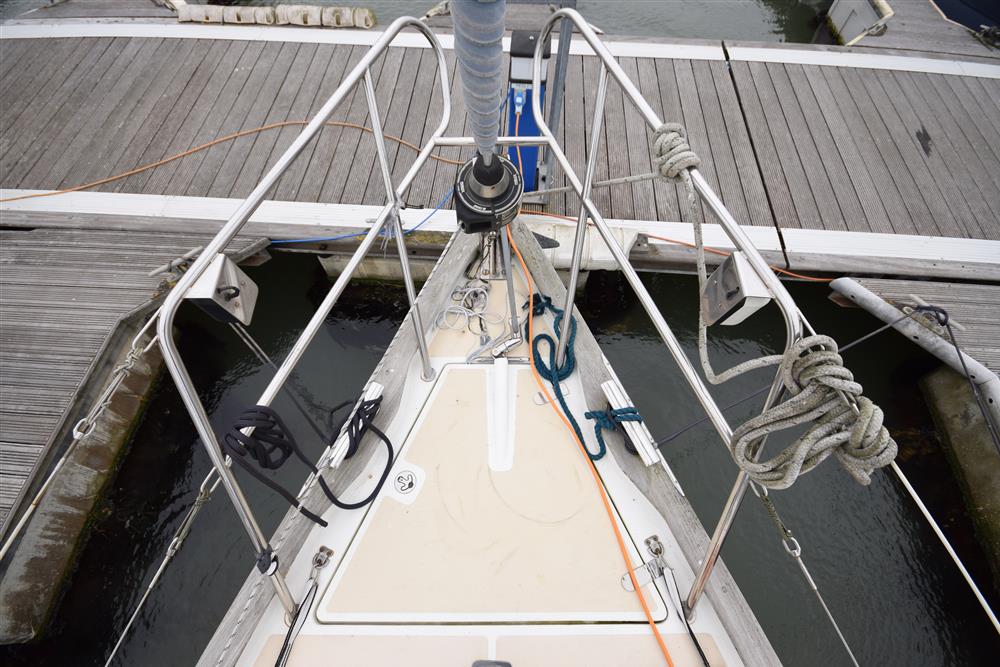

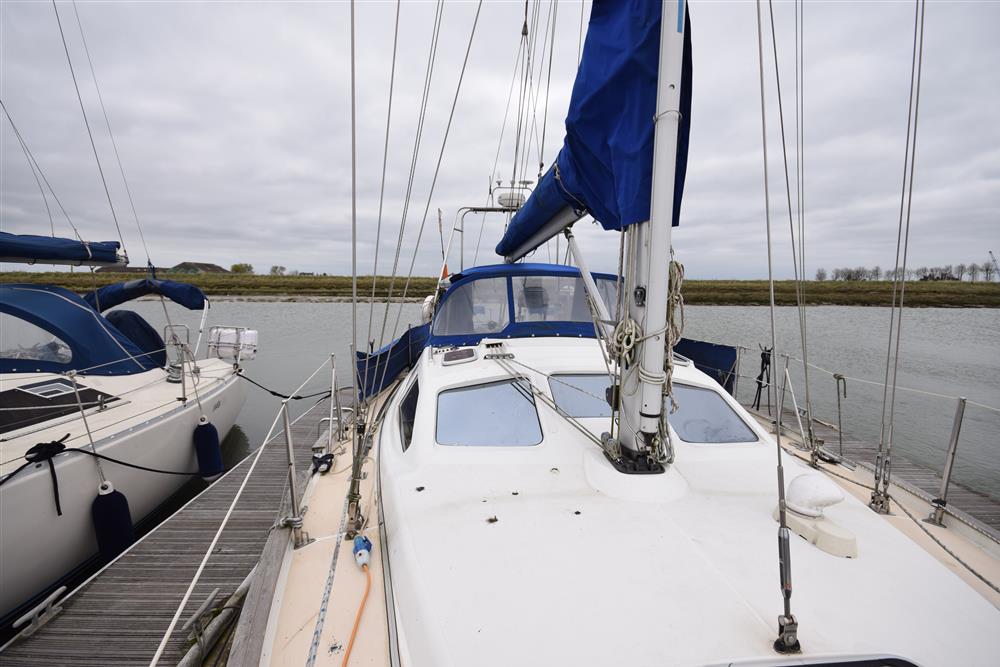

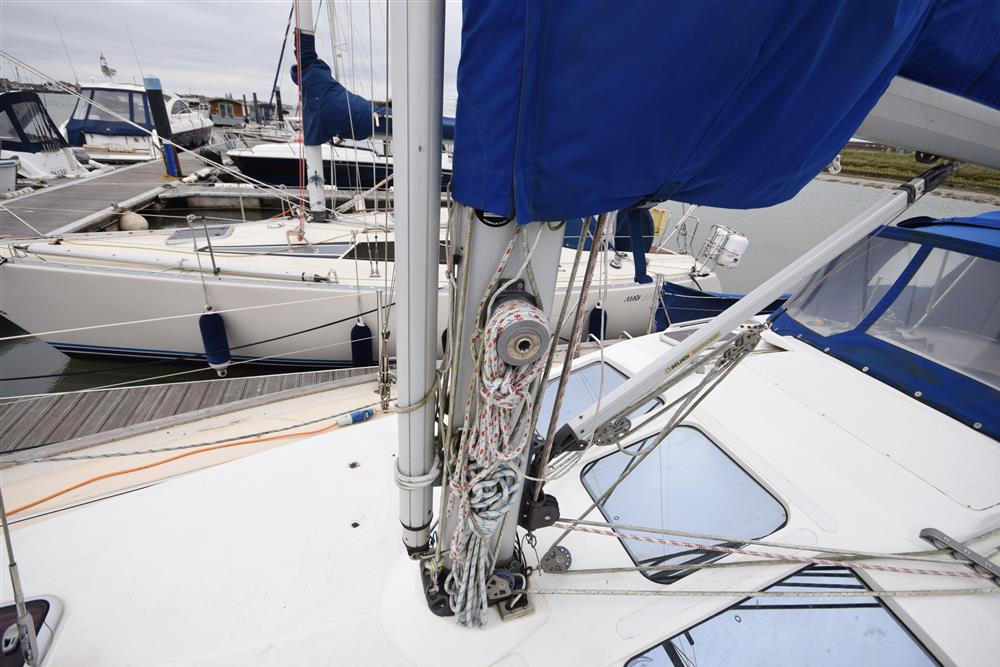

Masthead rigged sloop. Selden silver anodised double spreader, deck stepped mast and boom. Stainless steel standing rigging (new 2023). Slab reefing mainsail. Furlex headsail furling system. Removable inner forestay. Spinnaker pole stowed vertically on mast. Selden rod kicker. 2 x Lewmar 44 self-tailing sheet winches. 2 x Lewmar 16 self-tailing halyard winches on coachroof. Lewmar 8 winch on mast. Lines led aft to Spinlock clutches.

Deck Equipment

Navigation Equipment

Safety Equipment

Additional Equipment

Construction

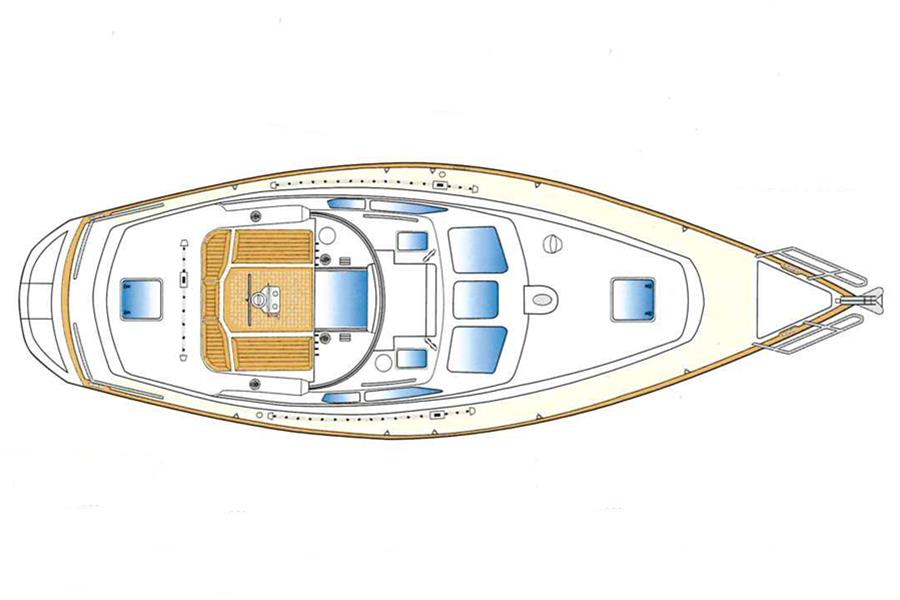

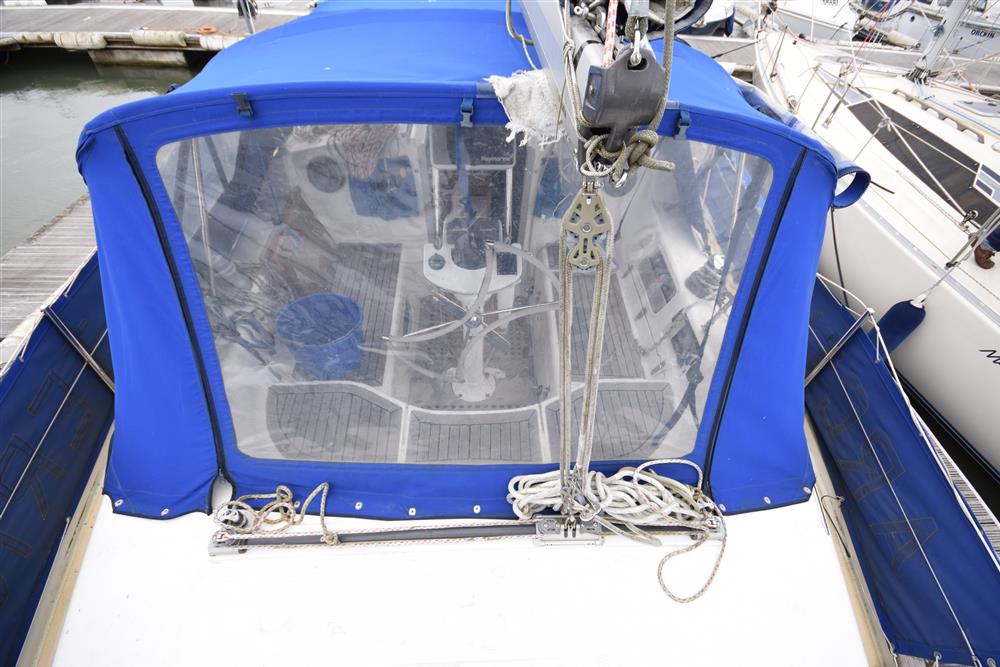

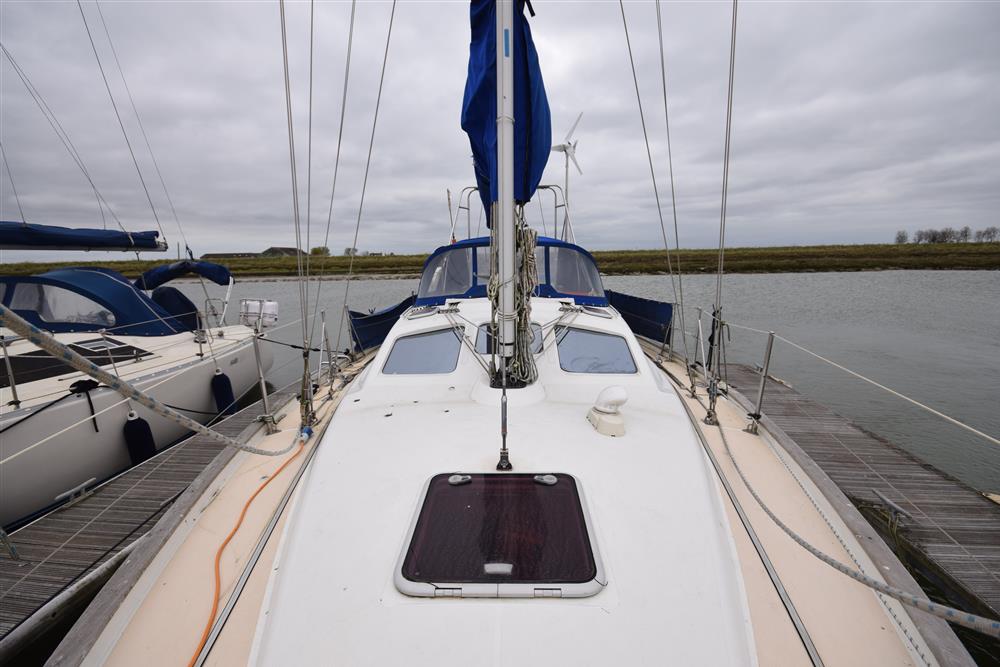

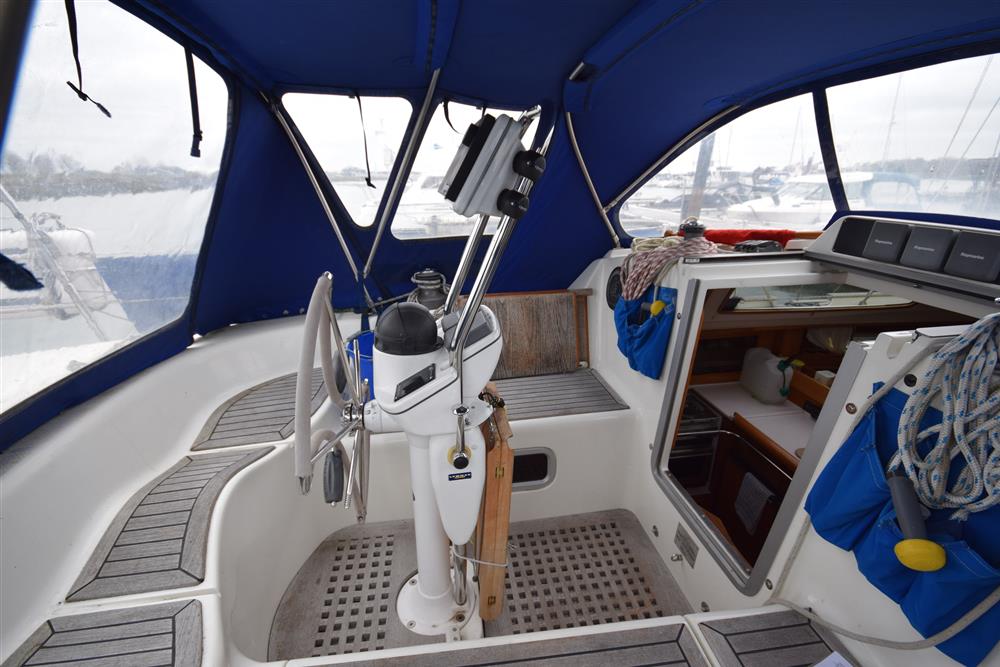

Southerly 115 MkIV built by Northshore Yachts in 2006. Ivory white GRP hull hand laid up to Northshore?s Nordseal laminating system. Underwater hull professionally Coppercoated in 2023. Blue waterline and style stripes. Cast iron swing keel with stainless pivot mounted on cast iron ballast plate. The keel box is an integral part of the hull layup and sandwich construction stiffening runs the entire length of the hull topsides. Swing keel shot blasted and conventionally antifouled in 2023. Keel is raised and lowered by a hydraulic ram powered by an electrically driven pump with a hand operated back up. New keel pennant and LED keel position display fitted 2023. White GRP decks with sand coloured moulded-in non-slip surfaces. Teak bulwarks and rubbing strakes to hull topsides. Lewmar Whitlock Mamba torque tube and gearbox steering system to semi-balanced twin rudders. Pedestal mounted Lewmar folding wheel (wheel new 2023). Self-draining centre cockpit with teak cockpit seats. Teak grating to cockpit floor. Seacocks serviced 2023.
